Safety Dampers

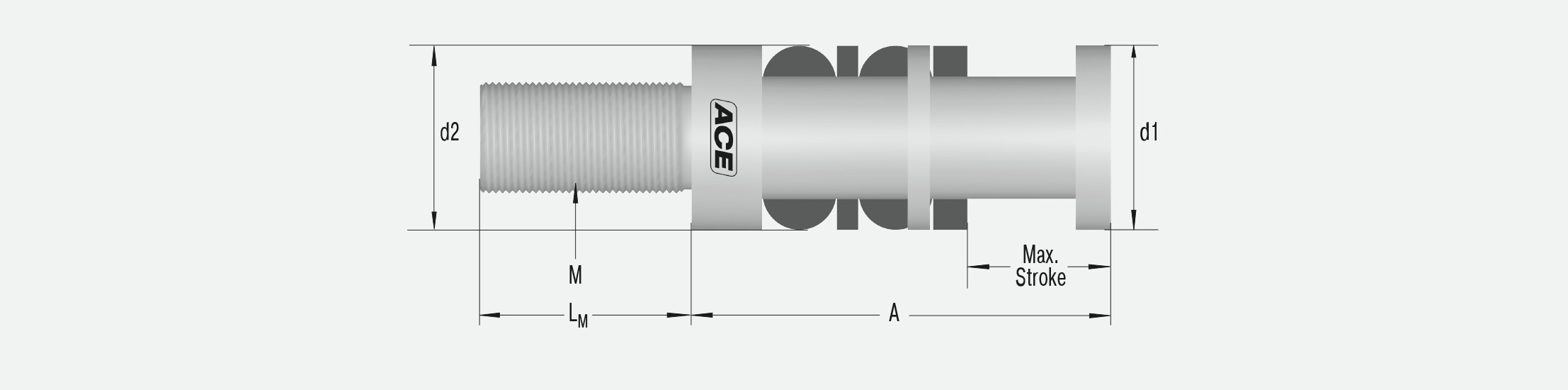

TI30-75-3
Compact one-off deceleration
Irreversible Emergency Stop Damper
Energy capacity emergency use 68000 in-lbs/cycle
Stroke 2.95 inch
Once only, but safely: ACE now offers these innovative single-use TUBUS TI absorbers for emergency stop applications as an alternative to the successful TUBUS profile dampers. In comparison to standard elastomer absorbers, these safety dampers ensure energy absorption of up to 96 % without a recoil effect. The dampers are deformed in the impact and cannot be reused afterwards.
The easy to assemble and maintenance-free single hit damper are also a cost-effective alternative to the hydraulic safety shock absorbers from ACE. They are made of a high quality synthetic with an inside metal core and absorb up to 10,953 Nm (96,94 in-lbs) energy.
The TUBUS TI is mainly used as emergency stop damping in linear axes, tool machines, servo drives with high speeds and other similar areas.
The easy to assemble and maintenance-free single hit damper are also a cost-effective alternative to the hydraulic safety shock absorbers from ACE. They are made of a high quality synthetic with an inside metal core and absorb up to 10,953 Nm (96,94 in-lbs) energy.
The TUBUS TI is mainly used as emergency stop damping in linear axes, tool machines, servo drives with high speeds and other similar areas.
Safety Dampers
TI30-75-3
Compact one-off deceleration
Irreversible Emergency Stop Damper
Energy capacity emergency use 68000 in-lbs/cycle
Stroke 2.95 inch
Energy capacity emergency use 68000 in-lbs/cycle
Stroke 2.95 inch
$--.--
