Einsatzbeispiele

Vibration isolation for high performance projectors

Low Freq. Pneumatic Levelling Mounts PLM
✕

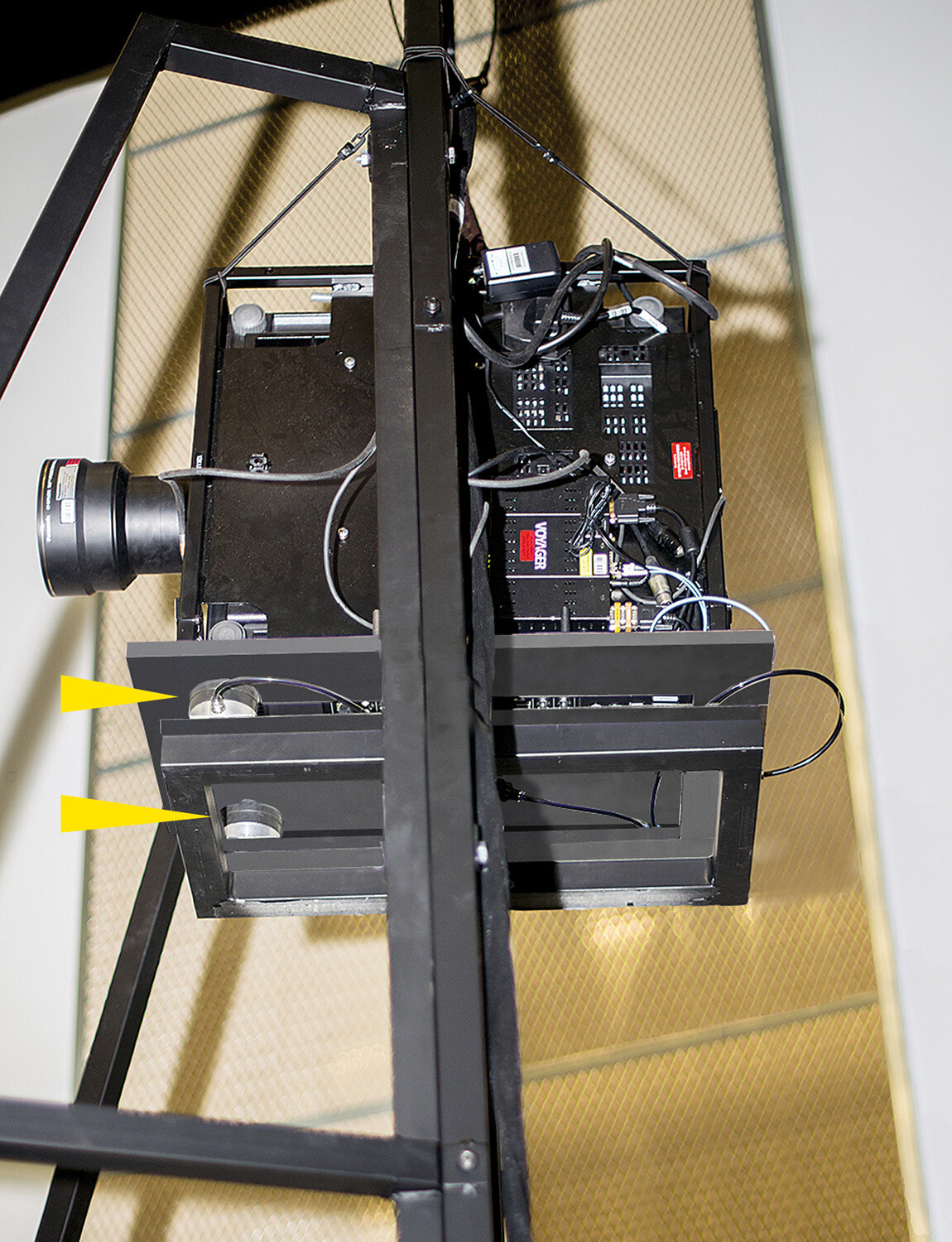

Three pneumatic levelling mounts of the type PLM-1 from the ACEolator family enable a mobile 3D HDD projector used by an opera company in Wales to produce razor-sharp images Copyright: Welsh National Opera, Cardiff CF10 5AL, United Kingdom
Low Freq. Pneumatic Levelling Mounts PLM
Three pneumatic levelling mounts of the type PLM-1 from the ACEolator family enable a mobile 3D HDD projector used by an opera company in Wales to produce razor-sharp images Copyright: Welsh National Opera, Cardiff CF10 5AL, United Kingdom
Go to Product Shop
Others
Oscillation insulation, Machines and plants, Measuring tables, Production plants, Finishing and processing centers

Highest image stability due to system for eliminating low-frequency vibrations on high-performance 3D projectors

In an opera production a 3D HDD projector was supposed to project images onto the stage during performances. Standing as it did on a trolley, which was to be moved over a tiled floor, the projector was virtually unusable. The problem was solved by combining an increase in the projector frame to 22 lbs with the assembly of pneumatic levelling mounts PLM-1 from ACE. PLM is located in the low-frequency range and is primarily used when measuring tables, test equipment and high-performance machines need to be perfectly isolated.
