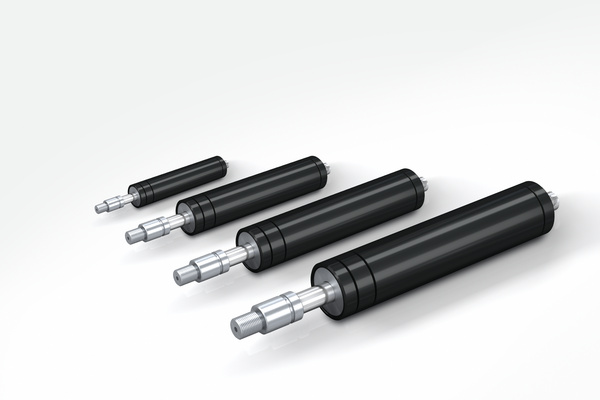

Industrial Gas Springs – Pull Type
GZ-15 to GZ-40

The solution to a lack of space: If standard push type gas springs cannot be used due to a lack of space, ACE's industrial pull type gas springs are the solution. They work in the opposite way of standard push type gas springs. The piston rod is retracted when the cylinder is unloaded. The gas pressure in the cylinder draws the piston rod in. "ACE pull type gas springs offer the maximum service life thanks to the solid chrome-plated piston rod and an integrated sliding bearing. The maintenance-free and ready-to-install products are available in body diameters of 15 mm to 40 mm (0.59"" to 1.57"") as well as forces from 40 N to 5,000 N ( 8.99 lbs to 1,124 lbs.) and are available from stock with valve and a large selection of accessories. The traction force can be fine-tuned using the adjustment valve."

Gas traction springs from ACE are used in industrial applications, automation and machine building, especially in test equipment and in medical technology as well as in the electronics and furniture industries.
