TYPES	Energy capacity in-lbs/cycle	Energy capacity in-lbs/h	Effective weight min. lbs	Effective weight max. lbs
MC6450M-0	16,550	1,300,000	308	1,190
MC6450M-1	16,550	1,300,000	300	1,200
MC6450M-2	16,550	1,300,000	1,020	4,080
MC6450M-3	16,550	1,300,000	3,460	13,480
MC6450M-4	16,550	1,300,000	11,700	46,800
MC64100M-0	33,000	1,700,000	154	617
MC64100M-1	33,000	1,700,000	600	2,400
MC64100M-2	33,000	1,700,000	2,040	8,160
MC64100M-3	33,000	1,700,000	6,920	27,680
MC64100M-4	33,000	1,700,000	23,400	93,600
MC64150M-0	50,000	2,200,000	220	1,014
MC64150M-1	50,000	2,200,000	900	3,600
MC64150M-2	50,000	2,200,000	3,060	12,240
MC64150M-3	50,000	2,200,000	10,380	41,520
MC64150M-4	50,000	2,200,000	35,100	140,400

TYPES

Energy capacity in-lbs/cycle

Energy capacity in-lbs/h

Effective weight min. lbs

Effective weight max. lbs

MC6450M-0

16,550

1,300,000

308

1,190

MC6450M-1

16,550

1,300,000

300

1,200

MC6450M-2

16,550

1,300,000

1,020

4,080

MC6450M-3

16,550

1,300,000

3,460

13,480

MC6450M-4

16,550

1,300,000

11,700

46,800

MC64100M-0

33,000

1,700,000

154

617

MC64100M-1

33,000

1,700,000

600

2,400

MC64100M-2

33,000

1,700,000

2,040

8,160

MC64100M-3

33,000

1,700,000

6,920

27,680

MC64100M-4

33,000

1,700,000

23,400

93,600

MC64150M-0

50,000

2,200,000

220

1,014

MC64150M-1

50,000

2,200,000

900

3,600

MC64150M-2

50,000

2,200,000

3,060

12,240

MC64150M-3

50,000

2,200,000

10,380

41,520

MC64150M-4

50,000

2,200,000

35,100

140,400

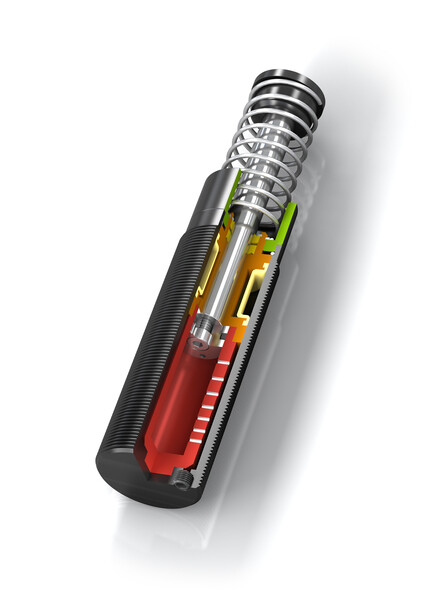

Industrial Shock Absorbers
MC64M

High energy absorption and robust design

Self-Compensating
Energy capacity 16,550 in-lbs/Cycle to 50,000 in-lbs/Cycle
Stroke 1.91 in to 5.91 in

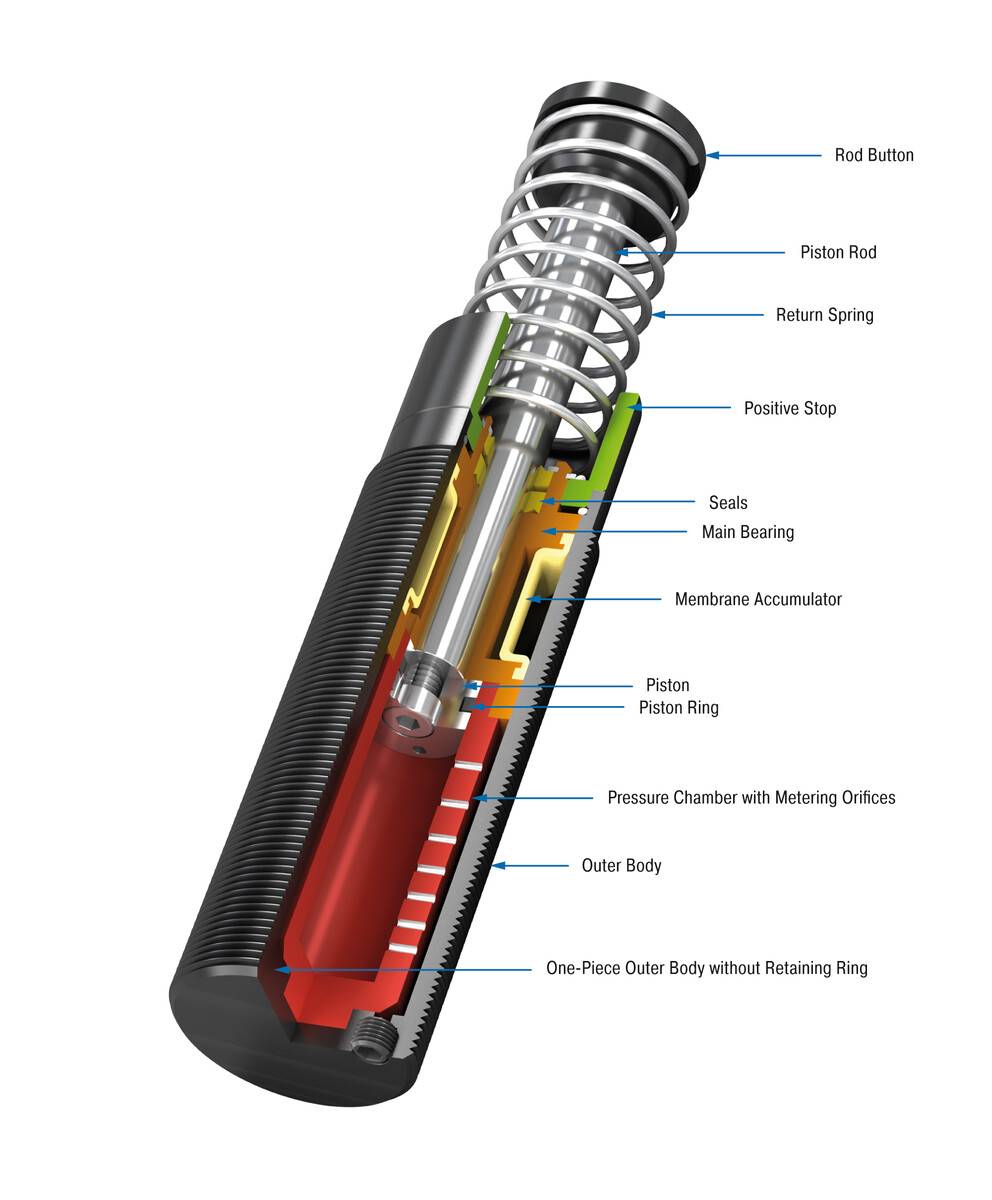

The latest damper technology: The combination of the latest sealing technology, annealed guide bearing and integrated positive stop make these self-compensating shock absorbers from ACE'S MAGNUM range so successful. After all, users benefit from the longer service life of the products, even in the most difficult environments. A continuous outer thread and extensive accessories make their contribution to the success story of the MC33 to MC64.

High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful absorbers enable full use of the machine's performance. Self-compensating shock absorbers react to changing energy conditions, without adjustment.

These self-compensating industrial shock absorbers are used in all areas of industrial automation and machine engineering, especially in automation and for gantries.
