SCS33 to SCS64
Emergency stop systems for linear modules in the manufacturing industry
For protecting equipment and modules such as these, the SCS series from ACE is the ideal solution in the emergency stop sector
Copyright: Roth GmbH & Co. KG, 90411 Nürnberg, Germany and Bosch Rexroth AG, 97816 Lohr am Main, Germany
Mech. engineering & automation
Linear slides, Machines and plants, Swivel units, Handling modules, Pneumatic cylinders

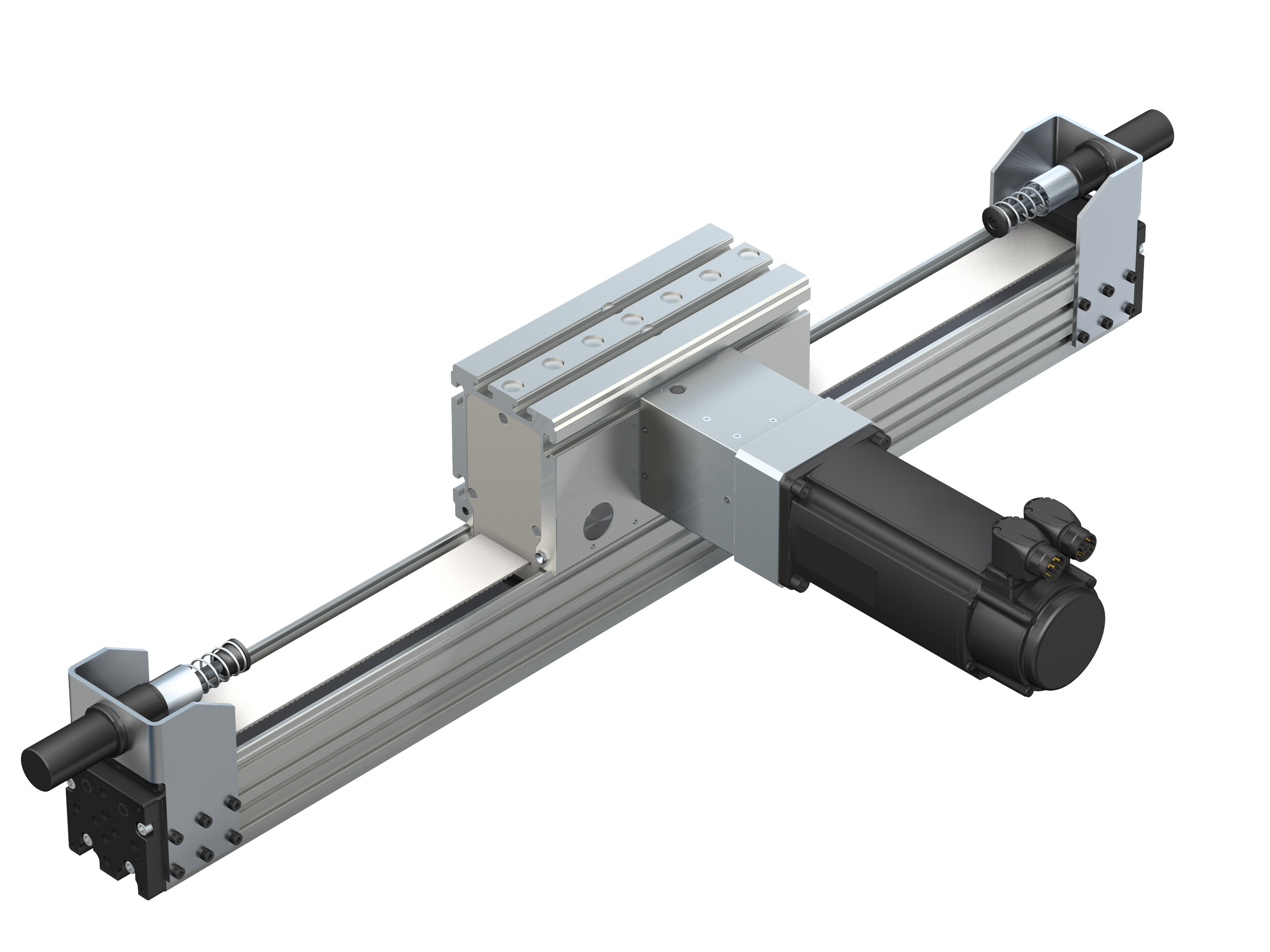

Combination of different safety dampers ensures effective protection of linear modules in different load ranges
Safety shock absorbers produced by ACE are installed in the top linear system models of one of the most prestigious companies in the field of drive and control technology. Their job: to protect the z-axis from damage caused by uncontrolled movements. Various safety dampers from the product family SCS33 to SCS64 are used for different load ranges. Tests have shown that, in the worst case, a collision speed of up to 16.5 f/s might occur. To be on the safe side, the interpretations were based in all cases on a slightly higher value.
