Basic Types
  • OPT25M
  • OPT25
  • OPT27M
TYPESEnergy capacity in-lbs/cycleEffective weight min. lbsEffective weight max. lbs
OPT25-19309.939.7
OPT25-293035.3141.1
OPT25-3930121.3485.0
OPT25-4930441.01,764.0
OPT25-59301,543.06,614.0

Miniature Shock Absorbers
OPT25

Corrosion protection and light weight

Self-Compensating
Energy capacity 930 in-lbs/Cycle
Stroke 1.00 in

Ideal for compact, efficient designs: The OPTIMUM 25 to 27 are designed for light weight and corrosion resistance.

The Anodized Aluminum outer body of each damper, produced from one solid piece, are filled with NSF H1 food-grade oil, offer a continuous thread incl. a supplied lock nut and also have an integrated positive stop. These hydraulic machine elements from ACE, are ready for immediate installation and are maintenance-free. A compact design for your specialty application, these units are environmentally friendly, offer great protection from corrosion and deliver excellent energy absorption in a lightweight package.
Configurator Configure your individual shock absorber with the right accessories Calculation Tool Calculate the right shock absorber for your application
Miniature Shock Absorbers
OPT25
Corrosion protection and light weight
Self-Compensating
Energy capacity 930 in-lbs/Cycle
Stroke 1.00 in

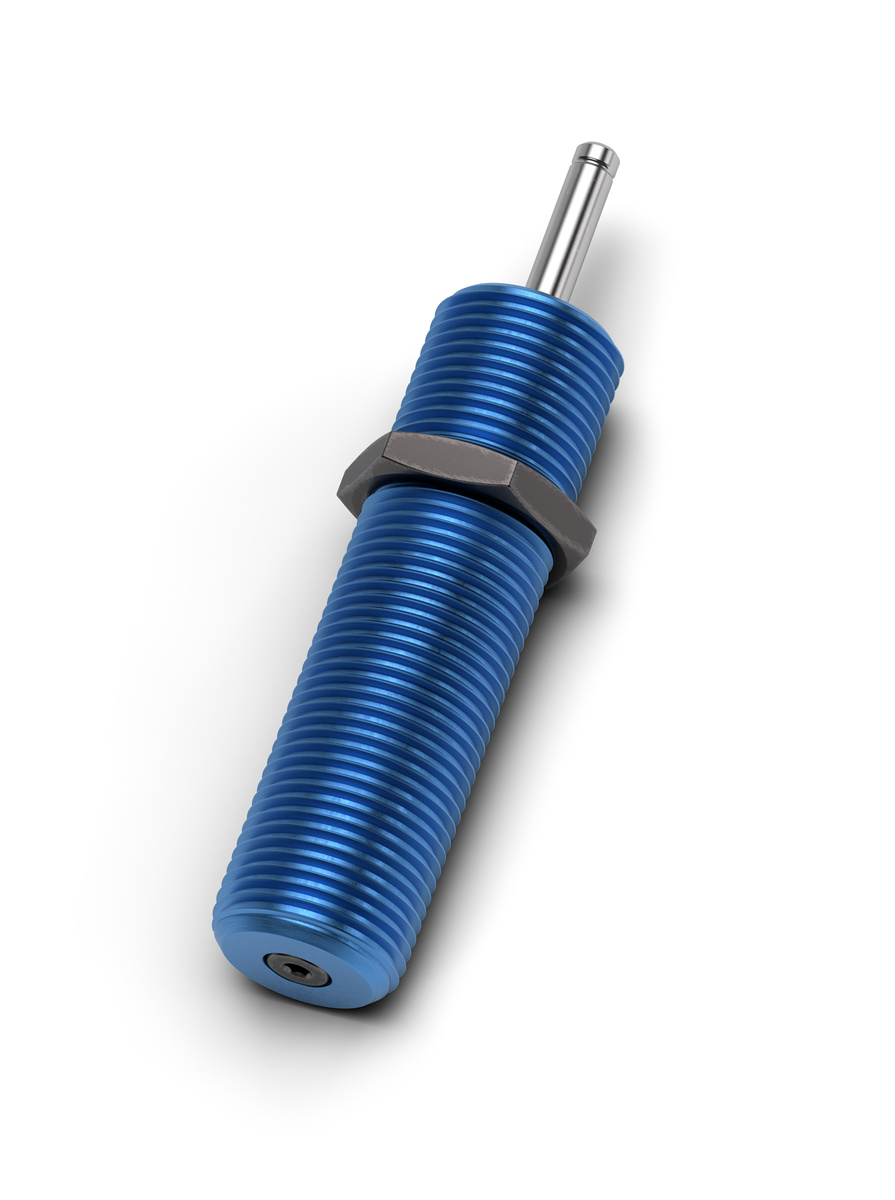

ACE Controls Inc. - Image - OPT25
ACE is not responsible for content on external linked websites.
ACE Controls Inc. - Image - OPT25

Technical Data

Energy capacity 930 in-lbs/Cycle

Stroke 1.00 in

Impact velocity range 0.89 ft/sec to 22.41 ft/sec

Emergency rating 2,210 in-lb for up to 5 cycles

Operating temperature range 15 °F to 180 °F

Mounting In any position

Material Outer body, Main bearing: Aluminium; Piston rod: Stainless steel; Locknut: Steel

Damping medium Food grade oil
