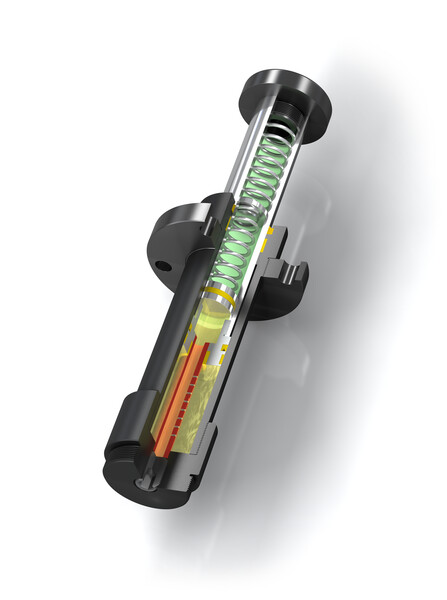

Safety Shock Absorbers
EB100-200-R
Low return force with spring assembly
crane Installations, Optimized Characteristic
Energy capacity per stroke 708000 in-lbs/cycle
Stroke 7.87 inch

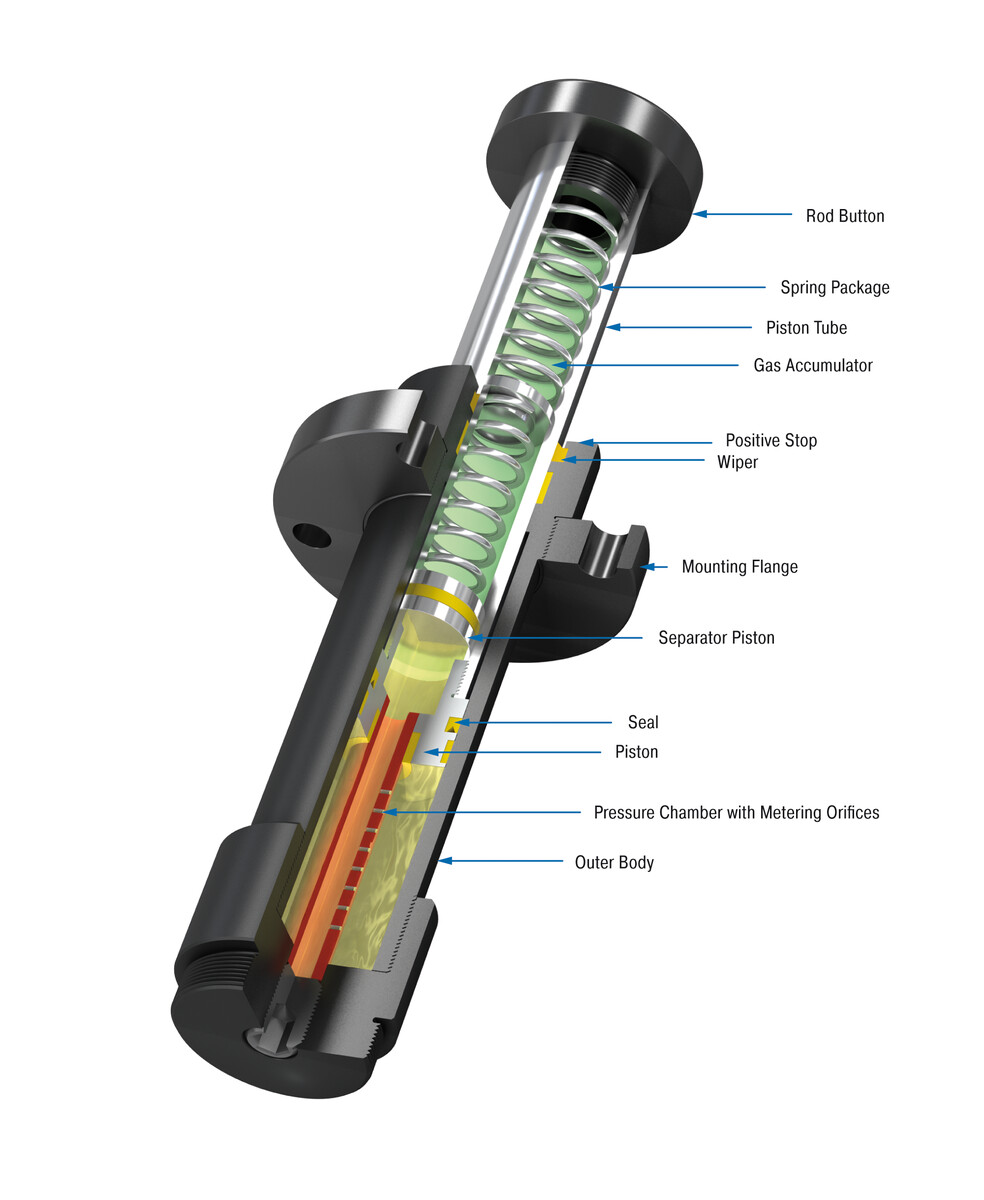

Reduced return forces: the ACE safety shock absorbers from the EB-Family offer internal system seals, large sized piston rod bearings and the maximum energy absorption for emergency stop applications. However, an integrated spring package in the robust shock absorber body makes sure that the return forces are reduced to a fraction of those in the CB-Family.
The damping characteristics of the maintenance-free and ready-to-install EB models is individually designed specific to the customer application, just like all ACE safety shock absorbers.
These safety shock absorbers reliably perform their services in crane systems and in numerous heavy duty applications, even if the power fails, because these hydraulic machine elements are independent braking systems.
The damping characteristics of the maintenance-free and ready-to-install EB models is individually designed specific to the customer application, just like all ACE safety shock absorbers.
These safety shock absorbers reliably perform their services in crane systems and in numerous heavy duty applications, even if the power fails, because these hydraulic machine elements are independent braking systems.
Safety Shock Absorbers

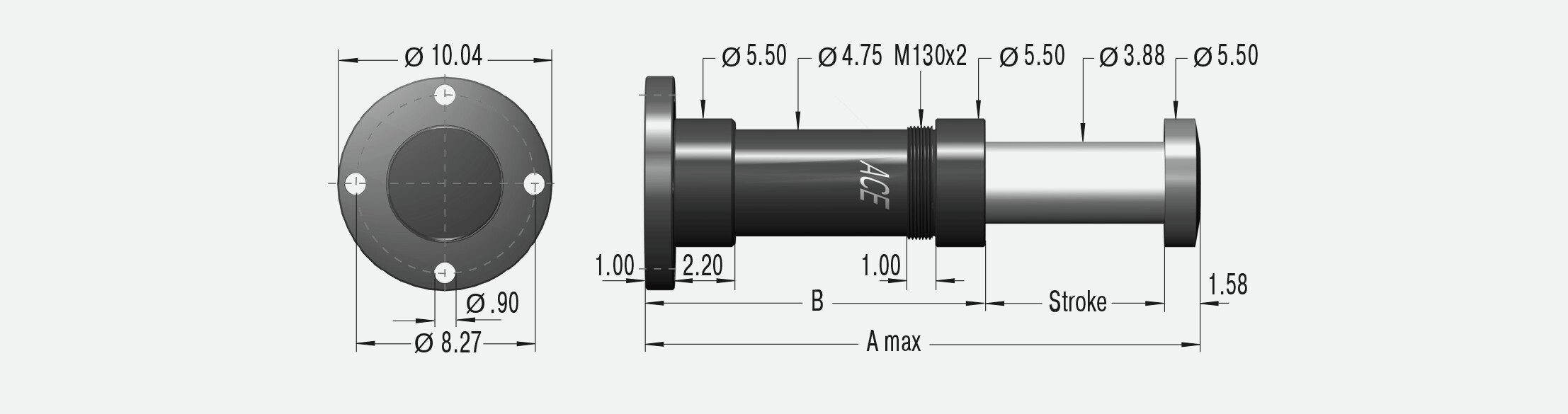

EB100-200-R
Low return force with spring assembly
crane Installations, Optimized Characteristic
Energy capacity per stroke 708000 in-lbs/cycle
Stroke 7.87 inch
Energy capacity per stroke 708000 in-lbs/cycle
Stroke 7.87 inch
$--.--
