TUBUS TR
End position damping for hydraulic cylinders in test systems
Mech. engineering & automation
swivel units, test stations, machines and plants, handling modules, test and calibration appliances
Gentle end position damping in hydraulic drives of test systems for vehicle tanks

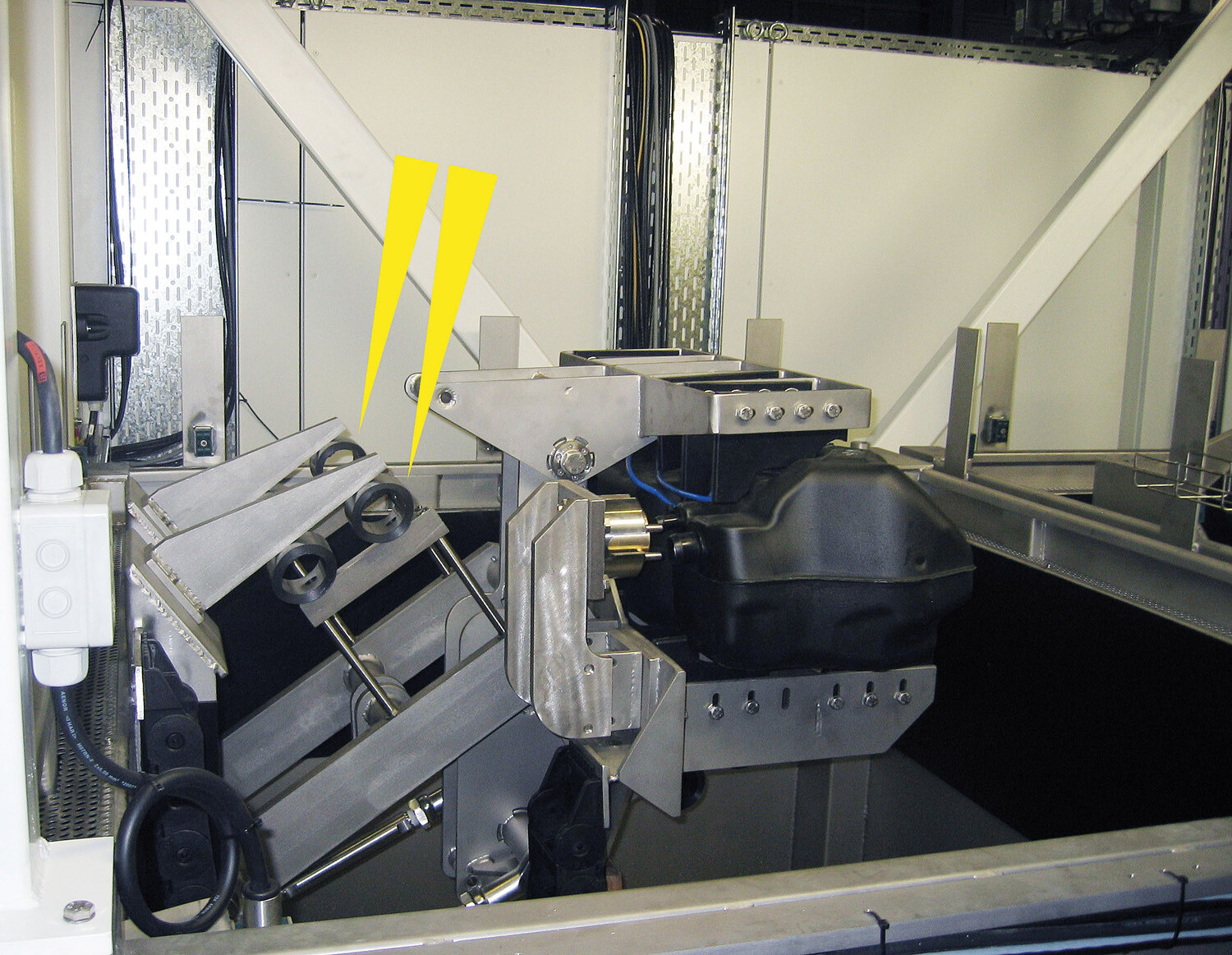

In a testing facility for vehicle tanks, the test specimens are pulled out of the water with a support arm. A hydraulic cylinder carries out the swinging movement and is attenuated in the end position by two TUBUS TR85-50. Even if this work could be taken over by other absorber solutions, the energy balance clearly speaks for the benefits of the profile dampers: they are inexpensive, they save space, they are free of leaks due to solid construction and are suitable for underwater functions in the test pool.
