Safety Dampers

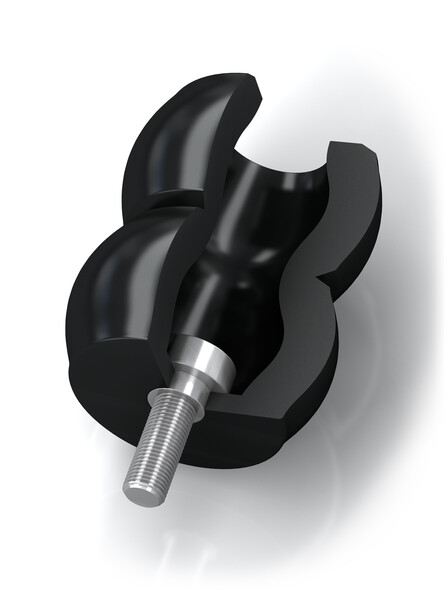

TC-S

For even more protection: the profile dampers from the TC range of the ACE TUBUS-Series can also be used as safety dampers. These maintenance-free, ready-to-install damping elements made of co-polyester elastomer have been specially developed for use in crane systems and meet the international industry standards for OSHA and CMAA. The TC-S design employs a unique dual concept to achieve the spring rate required for crane systems. "Whether TC-S or TC, this range of models represents a cost-effective solution with high energy absorption for energy management systems. The very small and light design of Ø 64 mm to Ø 176 mm (Ø 2.52"" to Ø 6.93"") progressively covers energy absorption within a range of 450 Nm to 17,810 Nm (3,983 in-lbs to 157,632 in-lbs)."

The profile dampers from the TC range protect cranes, loading and lifting equipment, hydraulic units and much more.
