Miniature Shock Absorbers
AS3/8X1
Miniature adjustable shock delivers convenience
Adjustable
Energy capacity per stroke 600 in-lbs/cycle
Stroke 1 inch

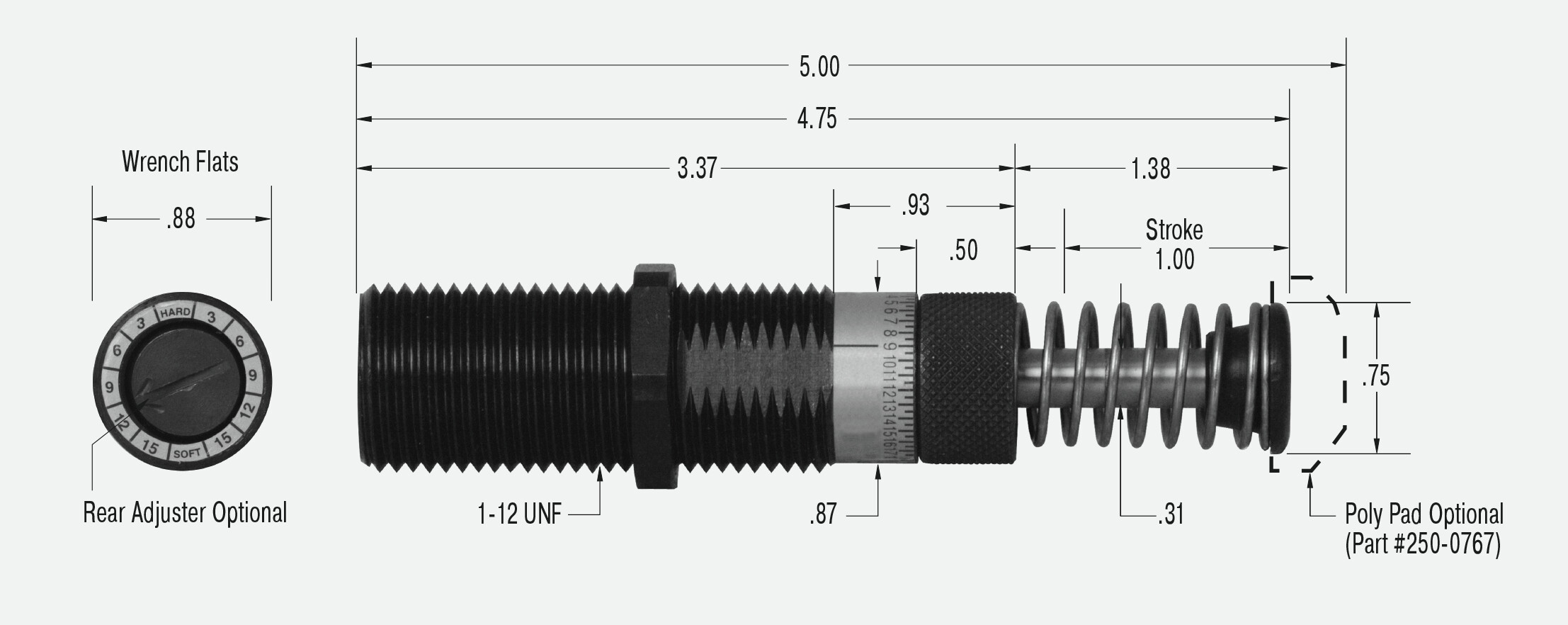

The adjustable ACE Controls 3/8x1" miniature shock absorbers offer high energy capacity and a wide effective weight range for handling a variety of applications. A unique feature of the multi-orifice with 3/8x1" (9.53 mm x 25 mm) bore is the optional rear slot adjuster. Adjustment can be made by turning the front adjuster to the preferred setting, or by turning the rear slot adjuster if desired.
Available with side or rear adjustment, these 1" bore shock absorbers provide performance and convenience in one reliable package. Applications include: Slides, material handling equipment, robotics,machine tools, pick and place systems, packaging equipment and more.
Available with side or rear adjustment, these 1" bore shock absorbers provide performance and convenience in one reliable package. Applications include: Slides, material handling equipment, robotics,machine tools, pick and place systems, packaging equipment and more.
Miniature Shock Absorbers
AS3/8X1
Miniature adjustable shock delivers convenience
Adjustable
Energy capacity per stroke 600 in-lbs/cycle
Stroke 1 inch
Energy capacity per stroke 600 in-lbs/cycle
Stroke 1 inch
$183.45
List price per item includes shipping
Please contact the factory for specific delivery timing.
No downloads available for this product
Don't know Size or Type?
Size it!
