Shock Absorption

TYPES	Energy capacity in-lbs/cycle	Energy capacity in-lbs/h	Effective weight min. lbs	Effective weight max. lbs
MC3325M-0-V4A	1,505	670,000	7	24
MC3325M-1-V4A	1,505	670,000	20	80
MC3325M-2-V4A	1,505	670,000	68	272
MC3325M-3-V4A	1,505	670,000	230	920
MC3325M-4-V4A	1,505	670,000	780	3,120
MC3350M-0-V4A	2,920	760,000	11	48
MC3350M-1-V4A	2,920	760,000	40	160
MC3350M-2-V4A	2,920	760,000	136	544
MC3350M-3-V4A	2,920	760,000	460	1,840
MC3350M-4-V4A	2,920	760,000	1,560	6,240

Industrial Shock Absorbers
MC3325M-0-V4A

Optimum corrosion protection

Self-compensating, Stainless Steel
Energy capacity per stroke 1505 in-lbs/cycle
Stroke 0.91 inch

The latest damper technology in stainless steel: The self-compensating industrial shock absorbers MC33 to MC64 from the tried-and-tested and popular MAGNUM range is also available with all outer components made from stainless steel, material AISI 316L (except piston rod). They are filled in the factory with special oil, which meets the permit conditions (NSF-H1) for the food industry.

"Just like the standard product family, the MAGNUM stainless steel models are distinguished by their robust, modern sealing technology, high energy absorption in a compact design, integrated positive stop and a wide damping range. Equipped with a PUR head, they are available in thread sizes M33x1.5 to M64x2 with damping strokes up to 100 mm (3.94""). Self-compensating shock absorbers react to changing energy conditions, without adjustment."

These self-compensating industrial shock absorbers made of stainless steel from ACE are mainly used in the food, medical, electronics and offshore industries, but also in many other markets.

$--.--

This product is not available for
online order.

If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

ACE CAD Traceparts Cadenas Part Solutions

Don't know Size or Type?

Size it!

MC3325M-0-V4A

Stroke	0.91 inch
A max.	5.95 inch
L1	0.52 inch
L2	3.27 inch
Thread M	M33x1.5
d1	1.18 inch
d2	11.5 inch

Technical Data

Energy capacity per stroke 1505 in-lbs/cycle

Energy capacity per hour 670000 in-lbs/h

Effective Weight 7 to 24 lbs

Hardness 0

Return Force 10.12 to 20.23 lbs

Return Time 0.03 s

Side load angle max. 4 °

Impact velocity range 0.5 to 16.5 ft/s

Operating temperature range 10 to 150 °F

Mounting In any position

Positive stop Integrated

Damping medium Special oil NSF-H1 approved

Material

Outer body Stainless steel (1.4404, AISI 316L)

Piston rod Hard chrome plated steel

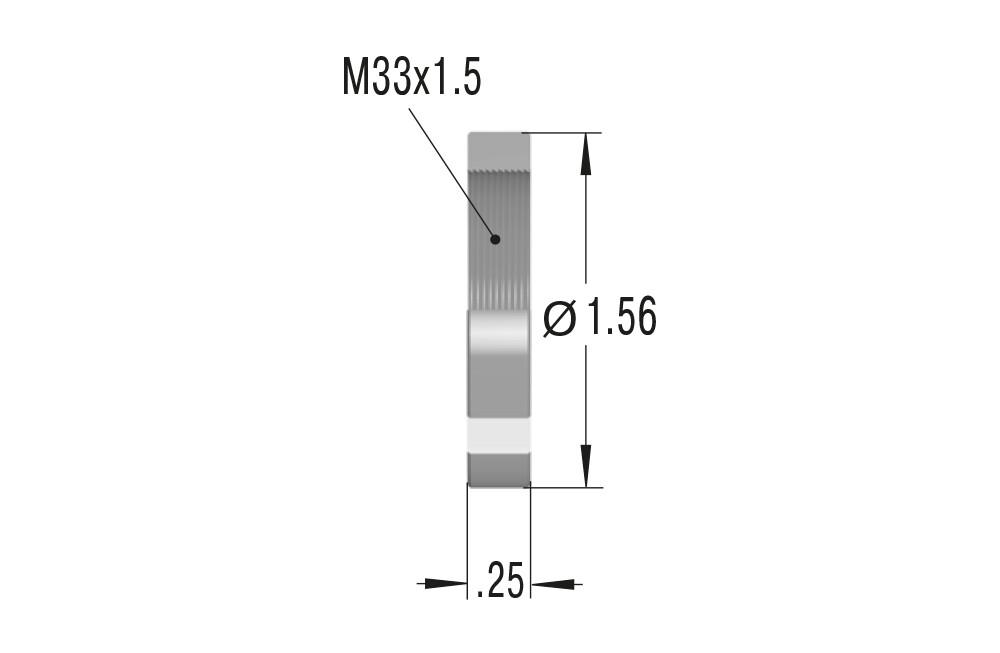

Locking ring Stainless steel (1.4404, AISI 316L)

Rod Button Stainless steel (1.4404, AISI 316L) with elastomer insert

Main bearing Stainless steel (1.4404, AISI 316L)

Return spring Stainless Steel

Accessories Stainless steel (1.4404, AISI 316L)

Technical Notes

Note

Impact button for noise reduction included. For emergency use only applications and for continous use (with additional cooling) it is sometimes possible to exceed the published max. capacity ratings. In this case, please consult ACE.

Safety instruction

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.

On request

Special oils, other special options and special accessories are available on request.

Sales Data

Weight
1.124 lbs

F and R Weight
-

S Weight
-

Custom tariff number
84879059

Country of origin
US

Application Areas

machining centers
tool machines
machines and plants
portal systems
medical technology
food industry
turntables
swivel units
z-axes

These self-compensating industrial shock absorbers made of stainless steel from ACE are mainly used in the food, medical, electronics and offshore industries, but also in many other markets.
