Motion Control

TYPES	Stroke inch	Compression force min. lbs	Compression force max. lbs
MVC225M	0.75	5.62	393.42
MVC600M	1.57	15.74	786.83
MVC900M	1.57	15.74	786.83
MVC225	0.75	5.62	393.42
MVC600	0.98	14.61	786.83
MVC900	1.57	15.74	786.83

Hydraulic Feed Controls
MVC900

Designed for applications with low precision requirements

Adjustable
Compression force 15.74 to 786.83 lbs
Stroke 1.57 inch

Many application options: the hydraulic feed controls in models MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.

"There are also plenty of accessories for the MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoid stick-slip effect. Speeds from 12 mm/min. (0.47""/min.) can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control."

Hydraulic feed controls with the designations MA and MVC are especially used in handling modules or linear carriages and also for applications with changing usage data.

$225.25

List price per item includes shipping

Please contact the factory for specific delivery timing.

ACE CAD Traceparts Cadenas Part Solutions

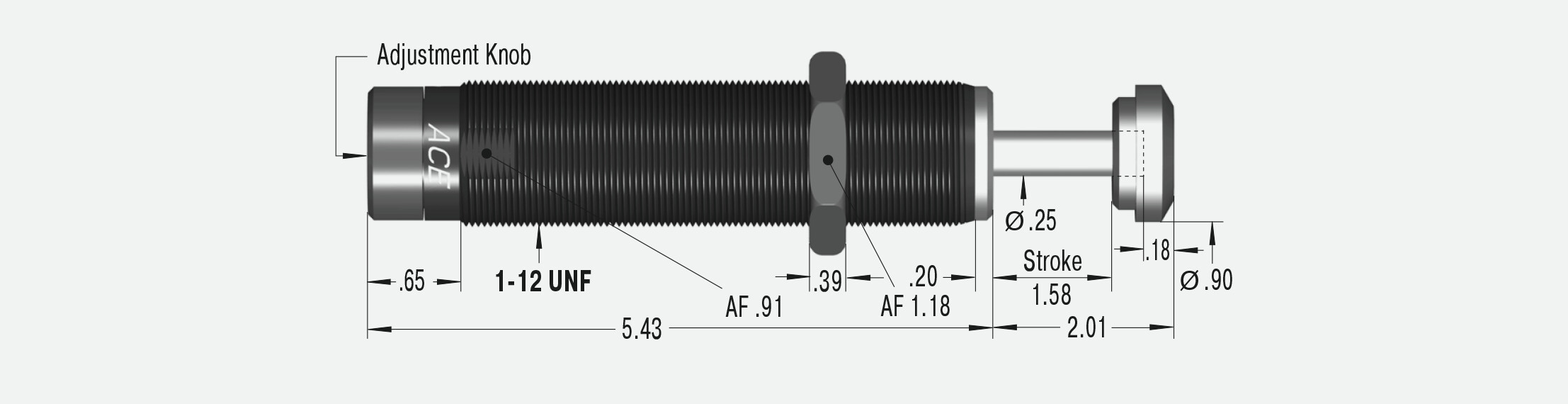

MVC900

Stroke

1.57 inch

Technical Data

Compression force 15.74 to 786.83 lbs

Return Force 2.25 to 7.87 lbs

Return Time 0.95 s

Side load angle max. 2 °

Impact velocity range At speeds of 0.98 ft/sec (0.3 m/s) the maximum allowed energy is approx. 17.70 in-lbs (2 Nm). Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.

Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.

Positive stop Integrated

Damping medium Oil, temperature stable

Mounting In any position

Operating temperature range 32 to 150.8 °F

Material

Outer body Nitride hardened steel

Piston rod Steel with black oxide finish or nitride hardened

Technical Notes

Note

Damper is preset at delivery in a neutral position between hard and soft.

Safety instruction

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions.

On request

Nickel-plated, weartec finish (seawater resistant) or other special options available on request.

Sales Data

Weight
0.913 lbs

F and R Weight
-

S Weight
-

Custom tariff number
84879059

Country of origin
US

Application Areas

conveyor equipment
automatic machinery
linear slides
handling modules

Hydraulic feed controls with the designations MA and MVC are especially used in handling modules or linear carriages and also for applications with changing usage data.
