AAM-52208
Effective vibration isolation in all directions
Vibration-Isolating Mounts
Natural frequency 16 Hz to 40 Hz
Load range 3 lb to 50 lb
Perfect for protecting lightweight equipment:All Atitude Mounts isolators, which are maintenance-free and ready-made, are designed to withstand loads between 1 lb - 50 lb (0.5 kg and 22.7 kg). This enables the impact and vibration isolator connection elements to effectively protect lightweight components. They isolate in all directions and can be installed in all axes. They have a built-in fail-safe design and are suitable for shear, compression and tension loads. As standard they are made from galvanized metal and neoprene rubber elements. For special applications, a highly shock-absorbing silicone version is also available from ACE.
AAM All Altitude Mounts are primarily used for isolating light-weight electronic systems and components, as well as off-road vehicles and military applications.
AAM All Altitude Mounts are primarily used for isolating light-weight electronic systems and components, as well as off-road vehicles and military applications.
Rubber-Metal Isolators
AAM-52208
Effective vibration isolation in all directions
Vibration-Isolating Mounts
Natural frequency 16 Hz to 40 Hz
Load range 3 lb to 50 lb
Natural frequency 16 Hz to 40 Hz
Load range 3 lb to 50 lb
CAD Drawings
Product-Downloads
No downloads available for this product
AAM-52208
Vibration-Isolating Mounts

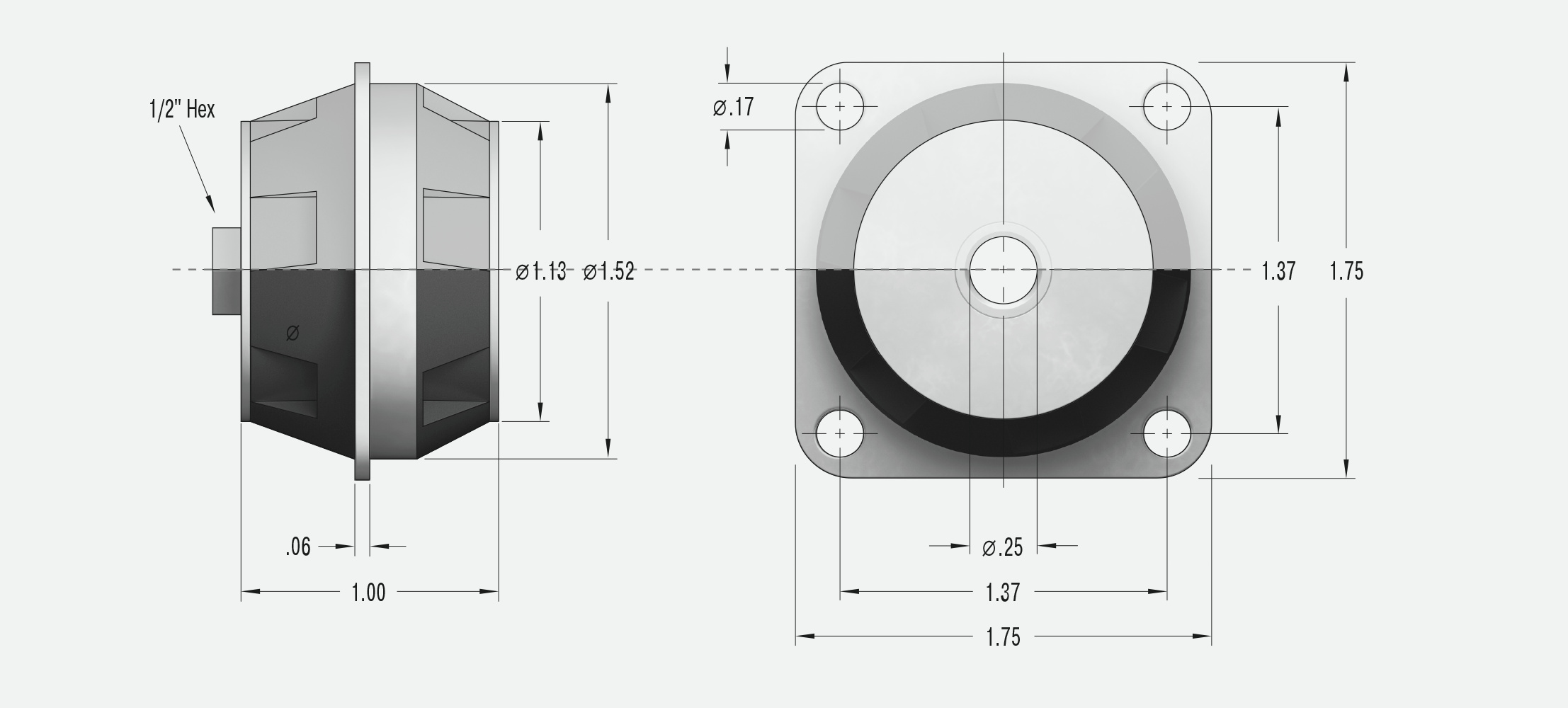

Dimensions
| M | 1/2" Hex inch |
Technical Data
Natural frequency 16 Hz to 40 Hz Hz Load range 3 lb to 50 lb lbs Operating temperature range -22 °F to 176 °F Environment Resistant against UV radiation Material Outer body: Zinc plated steel; Isolation medium: Neoprene (chloroprene rubber) |
NoteShock absorption possible. Mounting informationCan be installed in all spatial axes. Can be used for shear, compressive and tensile loads. On requestSpecial applications with high-damping silicone. |
