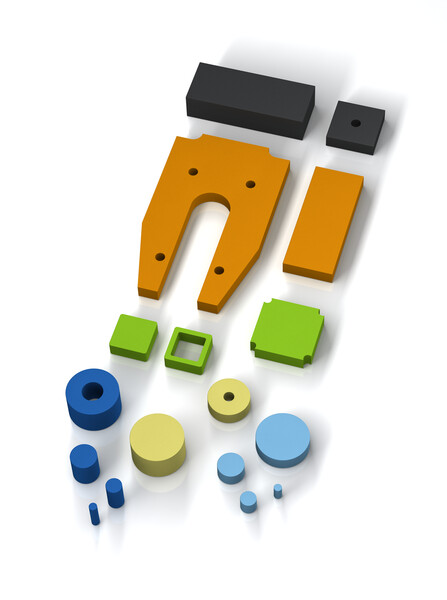

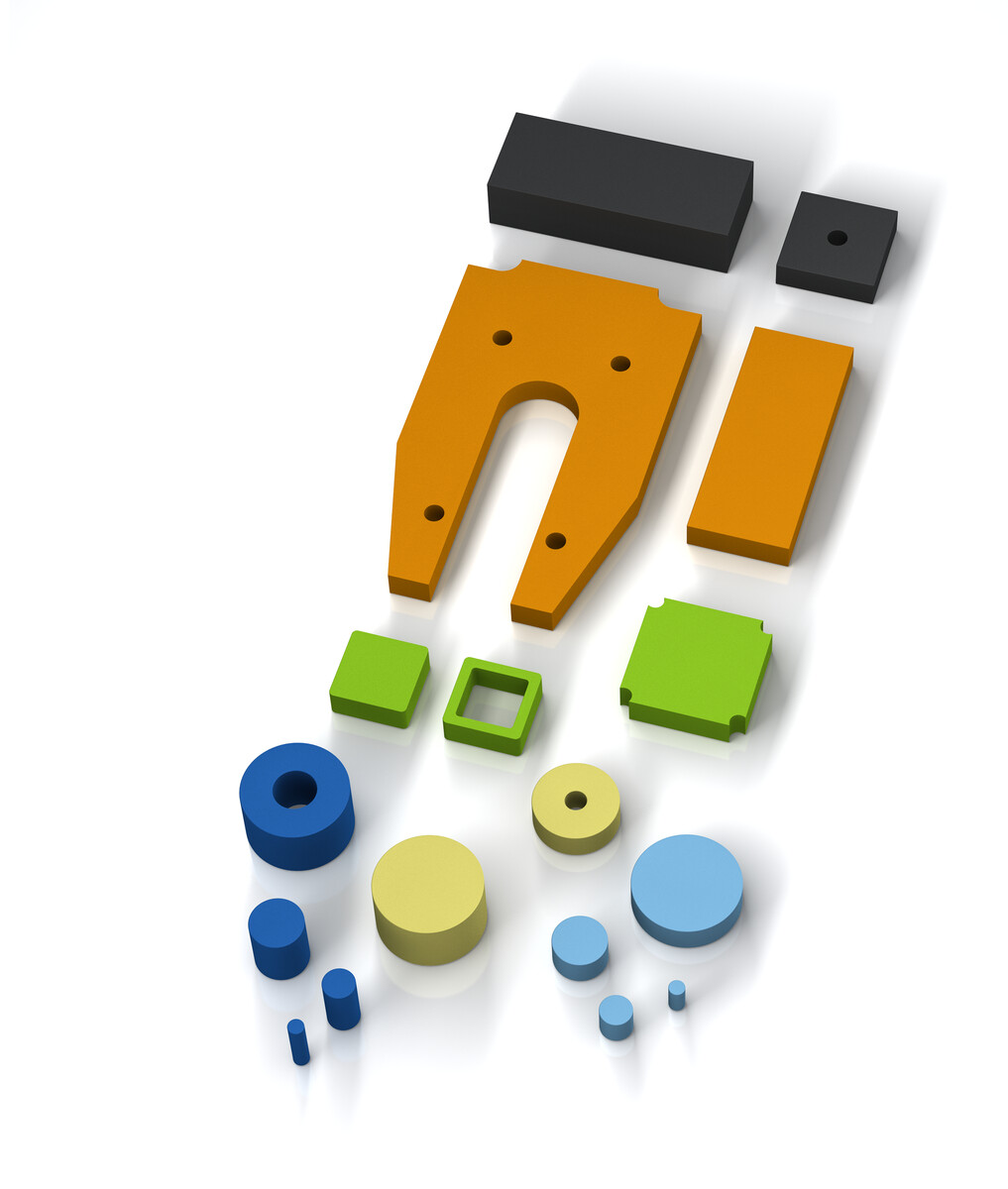

SLAB plates can be used in many applications, such as foundations for plants and machines, compressors, pumping stations, test benches, staircase bearings and generators.Learn More ...
Natural frequency 12 Hz to 50 Hz
Load range 0.29 psi to 72.5 psi
Standard colour Yellow, Turquoise, Green
Standard density SL-170 = 13.1 lb/ft3
Dimensions Widths: up to 59.1 in
Operating temperature range -22 °F to 158 °F
Environment Resistant against ozone and UV radiation. Chemical resistancy on request.
Material Profile body: Mixed cellular PUR-Elastomer (polyurethane)
Application field Foundations for presses, plants and machinery, Buildings, Compressors, Staircase bearings, Pipeline insulation, Crane rail systems, Pumping stations and generators, Vibrators and crushing systems, Conveyor technology
Possibilities for cutting: Water jet cutting, stamping, splitting, sawing and drilling.
Fire rating: B2, normally flammable according to DIN 4102.
Special versions with further dimensions such as thicknesses, colors, shapes and drawing parts e.g. curves.
